Features

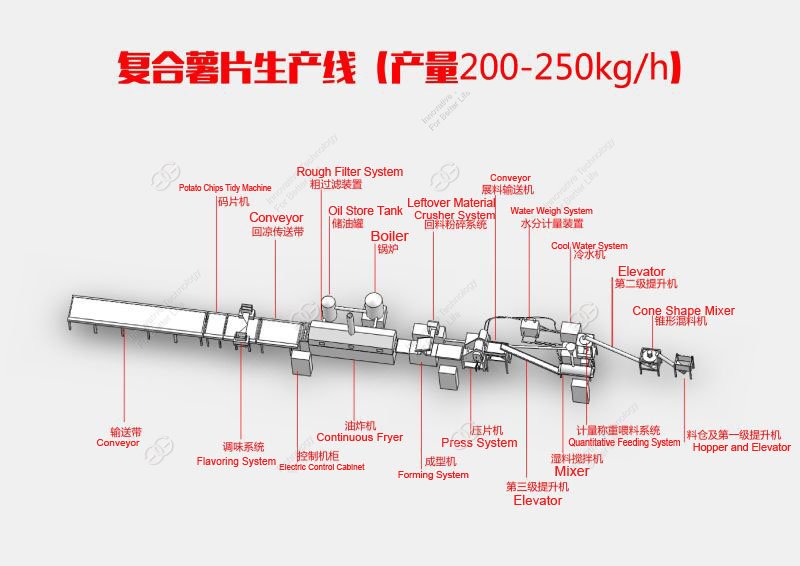

Working Process:
Feeding Material---Mixing---Quantative Feeding---Continuous Mixing---Press---Forming---Fryer---Flavoring---Tidying
Compound Potato Chips Line is with raw material of potato starch, Potato flakes as raw material.
Feeding Material---Mixing---Quantative Feeding---Continuous Mixing---Press---Forming---Fryer---Flavoring---Tidying
Compound Potato Chips Line is with raw material of potato starch, Potato flakes as raw material.
Technial Data
| No. | Item | Parameter |
| 1 |
Cone Shape Mixer Machine |
Power:2.6kw Dimension:1340*1120*2860mm Weight:680kg |
| 2 | Quantitative feeding and mixing system |
Power:12.5kw Dimension:2300*1460*3280mm Weight:1600kg |
| 3 | Press Machine |
Power:19.5kw Dimension:3400*1300*2480mm Weight:7000kg |
| 4 | Forming System |
Power:4.5kw Dimension:3380*1560*2000mm Weight:1200kg |
| 5 | Continuous Gas Frying System |
Power:30kw Dimension:9100*1800*2430mm Weight:6000kg |
| 6 | Leftover Material Crusher System |
Power:11kw Dimension:1560*1160*2050mm Weight:680kg |
| 7 | Flavoring and Conveyor System |
Power:3kw Dimension:4300*2200*1800mm Weight:900kg |
| 8 | Conveying System |
Power:1.5kw Dimension:8000*1150*1100mm Weight:960kg |
