10 Weighing Heads Plantain Banana Chips Packing Machine

Use: banana chips, french fries, potato chips, nuts, cut vegetables, etc.

Speed: 10-50bags/min

plantain chips packing machine application

Introduction

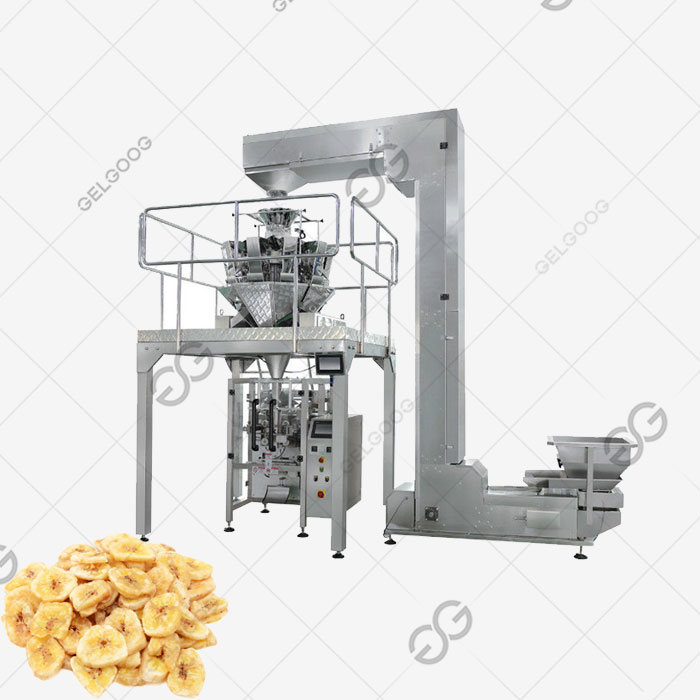

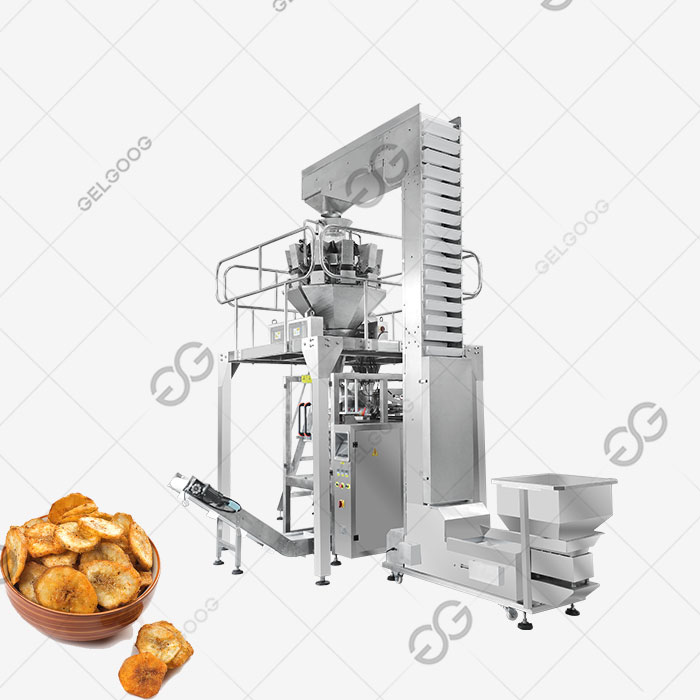

This plantain chips packaging machine is designed specifically for packaging banana chips, it combines high-speed operation with accuracy and reliability, which plays a good role in improving the efficiency and consistency of the plantain chips production line.



Banana Chips Packing Machine Working Principle:

  1. Automatic feeding: The banana chips are fed to the feeding hopper of the multihead weigher by a vibrating feeder or elevator. The feeding device will evenly deliver the banana chips to each weighing head according to the set speed and frequency.
  2. Distribution and weighing: Each weighing head consists of a small hopper and a high-precision weighing sensor. The hopper receives the banana chips from the feeding device. The flow of banana chips is controlled by vibrating the feeder to ensure the accuracy of weighing.
  3. Combination calculation: The control system uses high-speed calculation to find the best combination that meets the target weight from multiple weighing heads.
  4. Discharging and packaging: The selected weighing head will open the hopper at the same time and release the banana chips into the packaging machine below. The banana chips packaging machine will complete the subsequent bag making, sealing, printing and other processes.

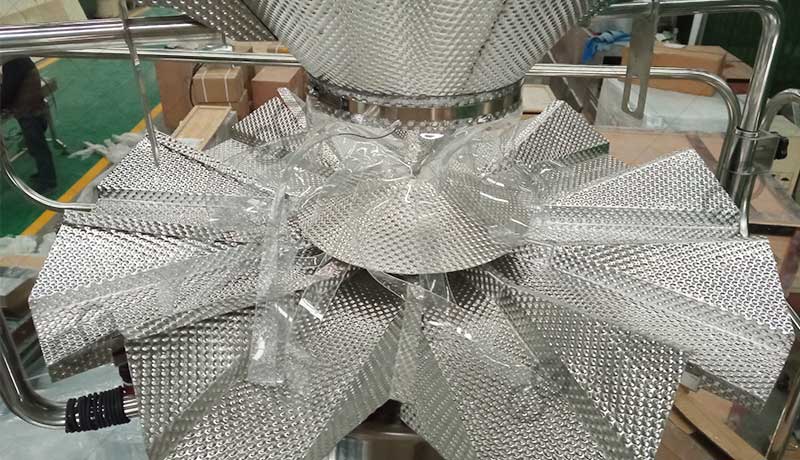

Multihead weigher

Plantain Chips Packaging Machine Features:

  1. IP65 waterproof design: The packaging machine adopts IP65 waterproof standard, which can effectively resist the intrusion of water and dust, and is convenient for cleaning after use, keeping the equipment hygienic and running stably for a long time.
  2. High degree of automation: With automatic feeding and weighing functions, it greatly improves production efficiency and reduces manual intervention, ensuring a smooth and accurate packaging process.
  3. Combination calculation: The control system uses high-speed calculation to find the best combination that meets the target weight from multiple weighing heads.
  4. Discharging and packaging: The selected weighing head will open the hopper at the same time and release the plantain chips into the packaging machine below. The plantain chips packaging machine will complete the subsequent bag making, sealing, printing and other processes.
Parameters

Model

GG-720

Film width

Max 720mm

Bag width

110-350mm

Bag length

100-420mm

Filling speed

10-50bags/min

Filling range

150-4000ml

Film thickness

0.04-0.10mm

Power

4kw/220v 50-60Hz

Machine size

1780*1350*2000mm

Machine weight

800kg

Air consumption

0.8m³/min 0.8mpa
